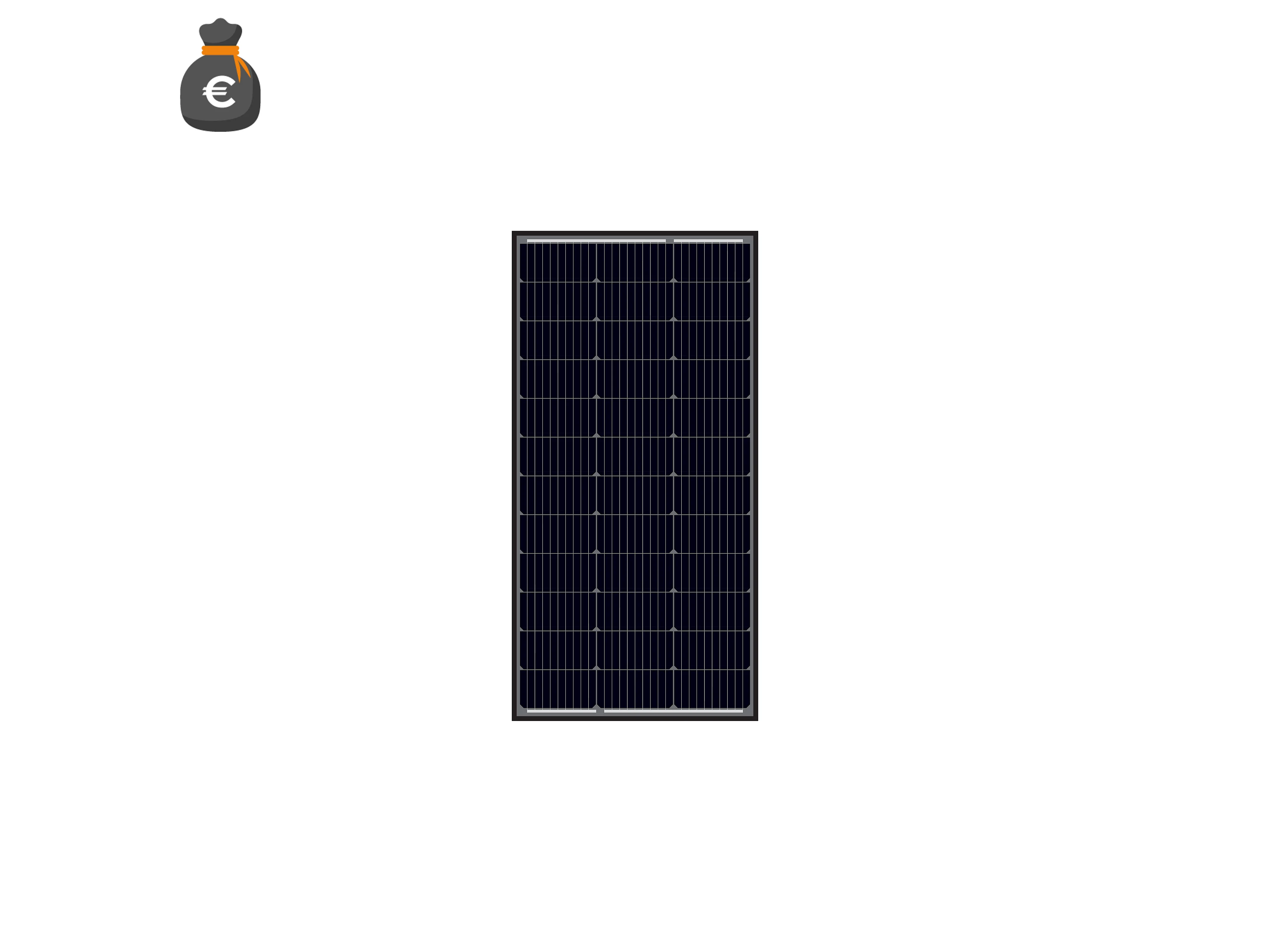

Alcapower 110W Monocrystalline Solar Panel - High Efficiency 19.03% for Renewable Energy Solutions

The Alcapower 110W monocrystalline solar panel represents a highly efficient solution for generating clean, renewable electricity. Measuring 1075x540x30mm and weighing just 6.1kg, this module offers an excellent combination of power and portability, ideal for a wide range of residential, commercial, and small off-grid applications.

Thanks to the use of high-quality monocrystalline cells (type 166x83 Mono) arranged in a 36-cell configuration (3x12), the panel reaches a maximum power of 110W with a tight tolerance of ±3%, ensuring stable and reliable performance over time. The module's efficiency stands at a remarkable 19.03%, maximizing the conversion of sunlight into electrical energy.

The panel's construction is designed to withstand the most extreme environmental conditions. The front cover is made of 3.2mm thick, high-transmission, low-iron tempered glass, providing excellent mechanical resistance and superior protection. The anodized aluminum alloy frame ensures strength and durability, preserving the module's structural integrity even under wind loads of up to 2400Pa and snow loads of up to 5400Pa.

The IP65-certified junction box provides high protection against dust and water jets, making the panel safe for outdoor installation. Technical specifications include a maximum voltage of 18.56V, a maximum current of 5.39A, an open circuit voltage of 21.92V, and a short circuit current of 5.7A. The maximum allowable system voltage is 1000V, and the maximum series fuse rating is 10A, offering flexibility and safety when integrating with other components of the photovoltaic system.

The panel is equipped with a 50cm long 2.5mm² cable terminated with MC4 connectors, making connections quick and easy. Operating temperatures range from -40°C to 85°C, demonstrating the product's adaptability to different climates. The nominal operating temperature of the cell (NOCT) is 45±2°C, and the temperature coefficients of Pmax (-0.350%), COV (-0.270%), and ISC (+0.048%) indicate good performance stability even under conditions of thermal variations.

In summary, the Alcapower 110W monocrystalline solar panel is an excellent choice for those looking for a reliable, efficient and long-lasting energy solution, significantly contributing to the reduction of the ecological footprint and savings on energy costs.
