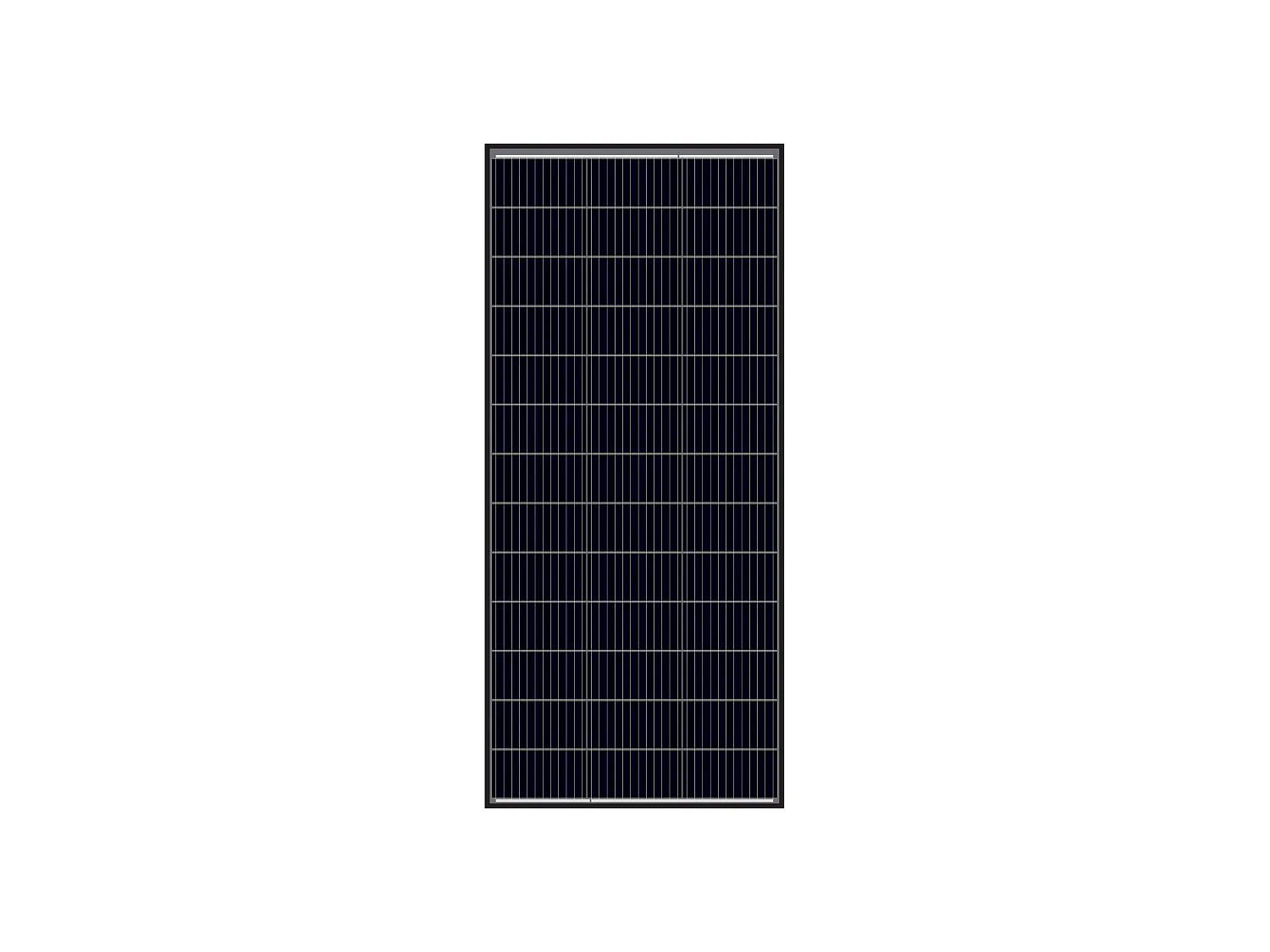

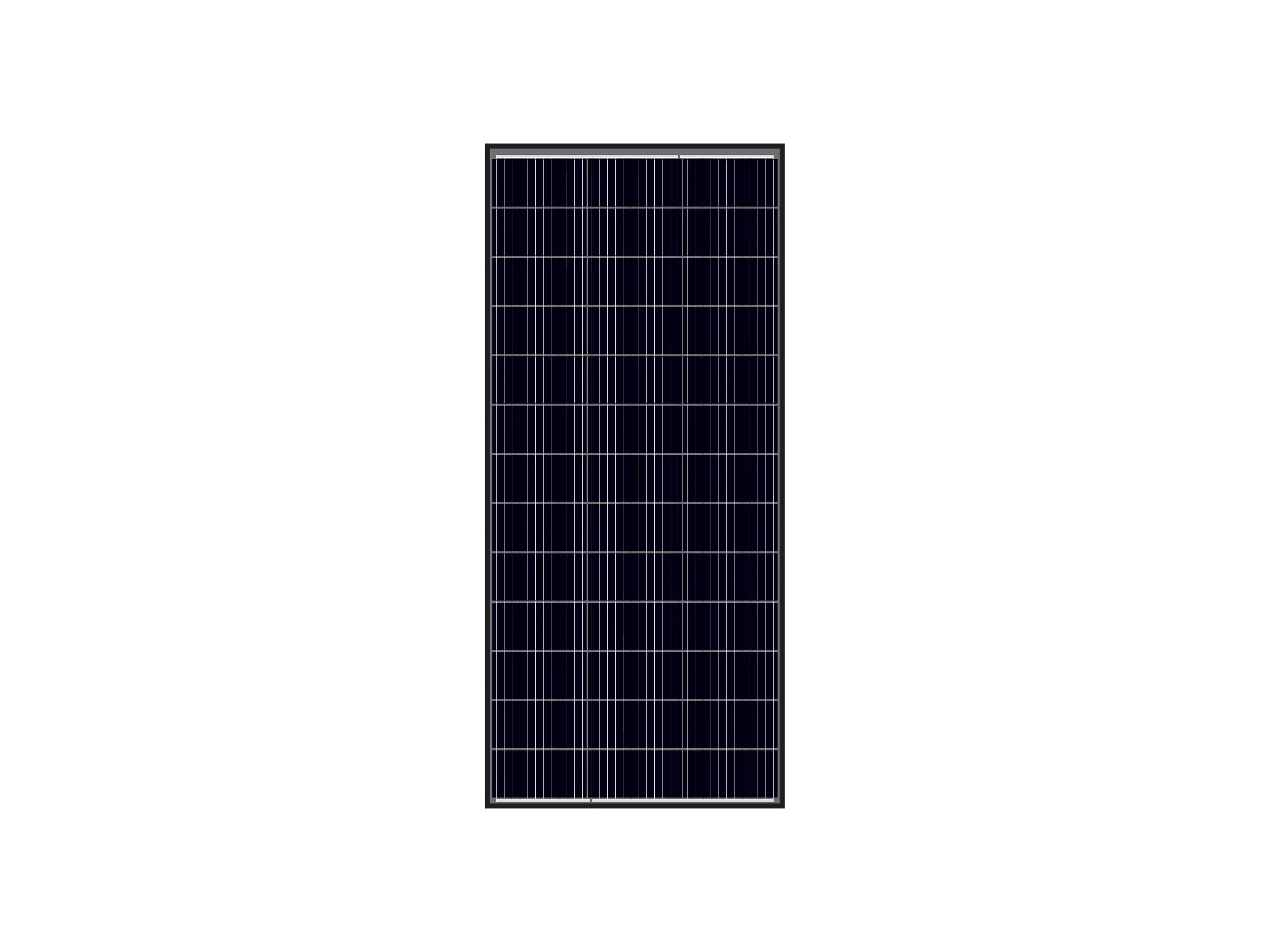

Alcapower 200W Monocrystalline Solar Panel - High Efficiency 20.8%, Dimensions 1485x668x30mm

This 200W monocrystalline solar panel from Alcapower represents an efficient and reliable solution for renewable energy production. With a maximum power of 200W and a tolerance of ±3%, it guarantees consistent performance. Monocrystalline technology ensures a high module efficiency of 20.8%, optimizing the conversion of sunlight into electricity. Technical specifications include a maximum voltage of 22.45V and a maximum current of 8.91A, with an open circuit voltage of 26.01V and a short circuit current of 9.41A, confirming its robust performance.

Designed to withstand adverse environmental conditions, the panel offers a wide operating temperature range, from -40°C to 85°C. The maximum system voltage of 1000V makes it suitable for various photovoltaic system configurations. Safety is guaranteed by Type 1 (UL1703) and Class C (IEC61730) fire resistance, with a maximum series fuse rating of 10A. The cell type is 210x105 Mono, composed of 39 cells arranged in a 3x13 configuration.

The module measures 1485x668x30mm, weighing only 10.5kg, making installation easy. The front cover is made of 3.2mm tempered glass with high transmission and low iron content, while the frame is made of anodized aluminum alloy for greater durability. The IP65-rated junction box ensures protection from the elements, and the 50cm-long 2.5mm² cable with MC4 connector simplifies connections. The panel is designed to withstand wind loads of up to 2400Pa and snow loads of up to 5400Pa, demonstrating its excellent mechanical resistance.

The nominal cell operating temperature (NOCT) is 45±2°C. The temperature coefficients of maximum power (-0.350%), open circuit voltage (-0.270%), and short circuit current (+0.048%) provide valuable information on panel performance under different thermal conditions, allowing for accurate energy production estimation.
