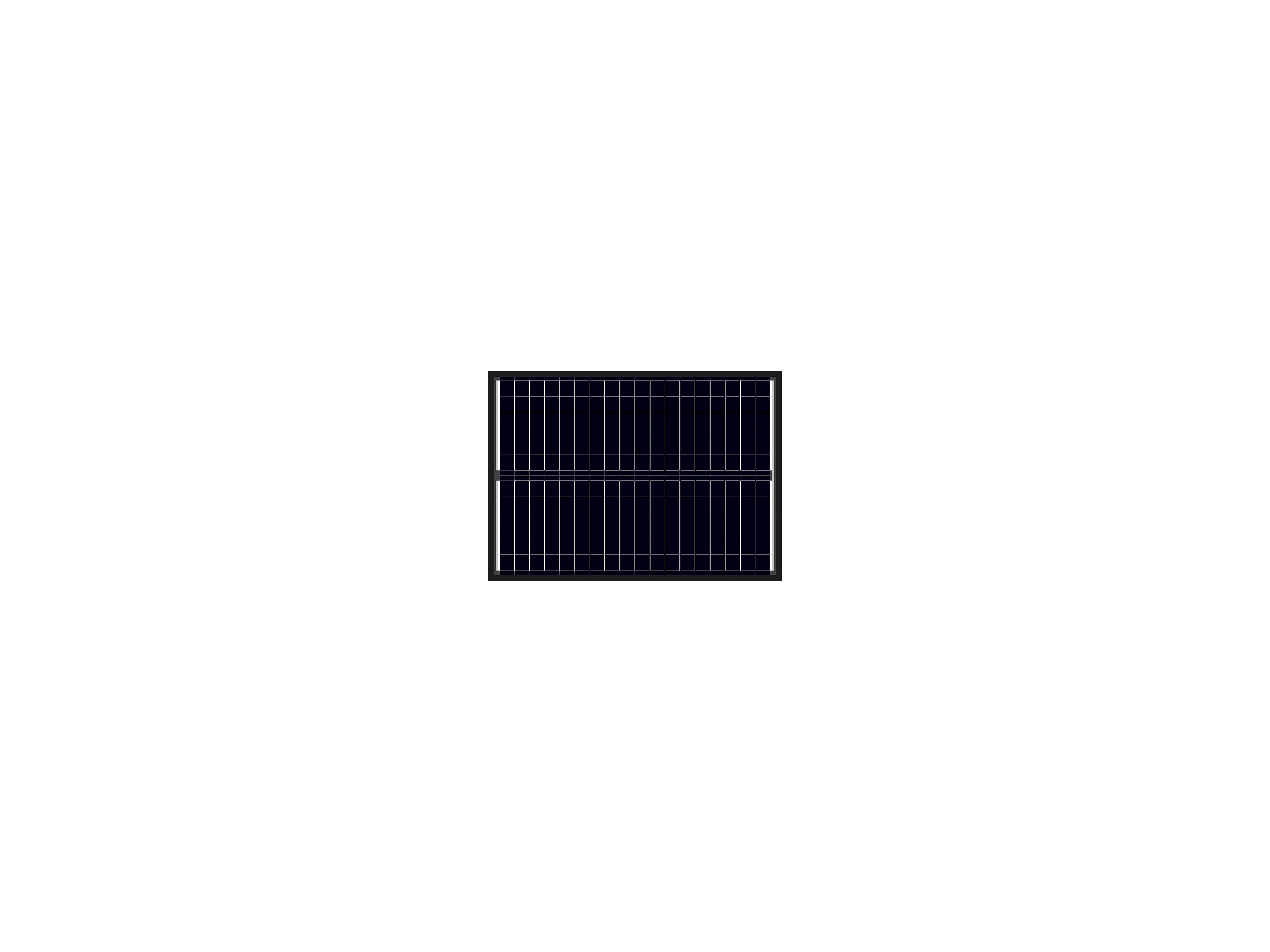

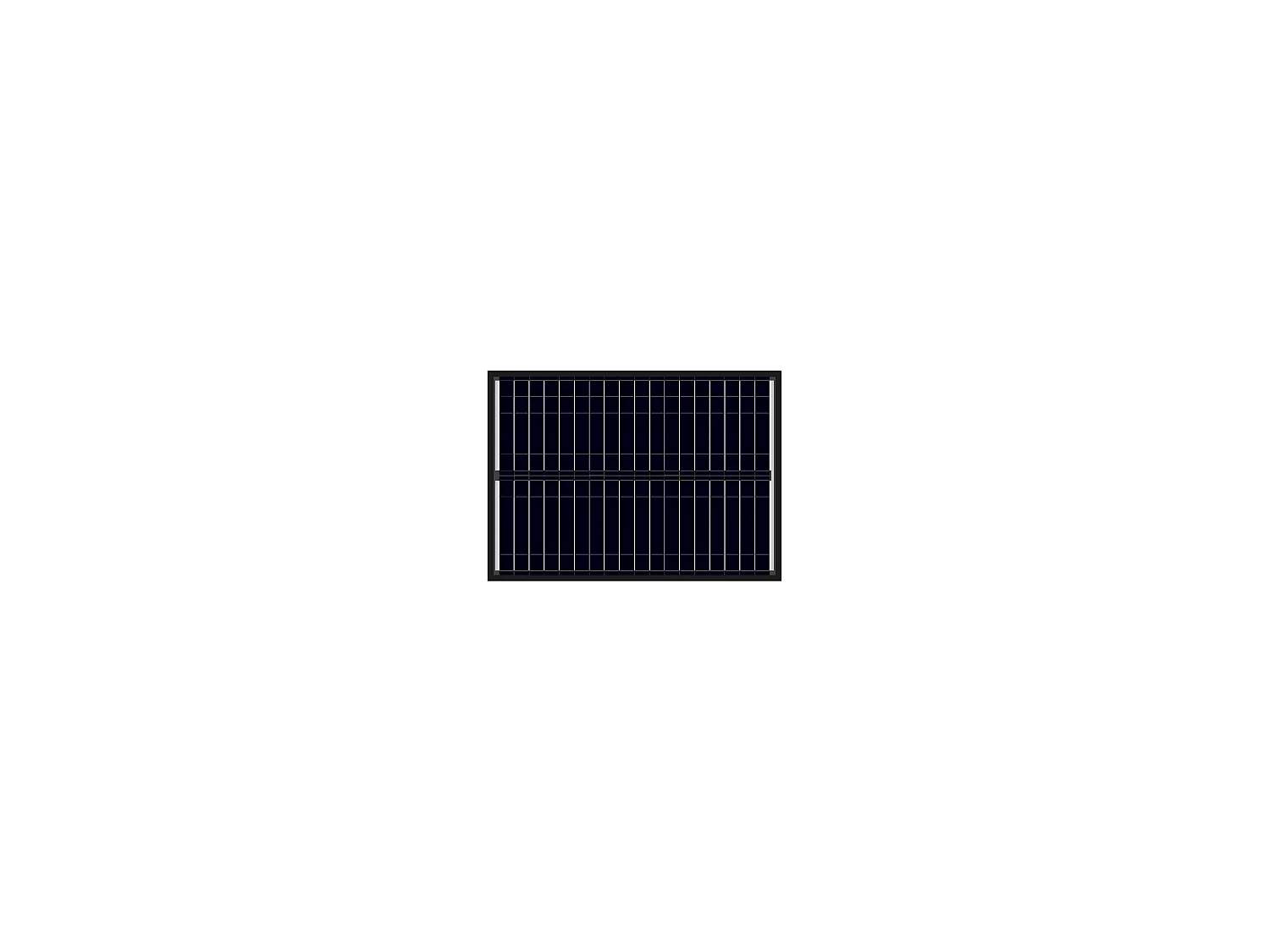

Alcapower 50W Monocrystalline Solar Panel 625x445x25mm 17.98% Efficiency, 210x30 Mono Cells, 36 Cells
61,59 €
Description
The Alcapower 50W monocrystalline solar panel represents an efficient and reliable solution for generating renewable energy. Designed with 210x30 Mono cells, this panel offers a remarkable efficiency of 17.98%, ensuring optimal conversion of sunlight into electricity.
Main Features:
- Maximum Power: 50W, with a tolerance of ±3% to ensure consistent performance.
- Optimized Voltage and Current: Maximum voltage of 21.06V and maximum current of 2.38A, ideal for a wide range of off-grid and residential applications. The open circuit voltage is 24.90V and the short circuit current is 2.53A.
- Durability and Safety: Built to withstand extreme environmental conditions, with an operating temperature range of -40°C to 85°C. Fire resistance is certified Type 1 (UL1703) and Class C (IEC61730). The maximum supported system voltage is 1000V and the maximum series fuse rating is 10A.
- High-Quality Materials: The panel features a 3.2mm high-transmittance, low-iron tempered glass front cover to maximize sunlight absorption. The frame is made of anodized aluminum alloy, providing strength and corrosion resistance.
- Connectivity and Installation: The junction box is IP65 certified, ensuring protection from dust and water jets. The included cable is 2.5mm², 50cm long, with MC4 connectors for easy and secure connection.
- Performance at Various Temperatures: The nominal cell operating temperature (NOCT) is 45±2°C. The temperature coefficients for Pmax, COV and ISC are -0.350%/°C, -0.270%/°C and +0.048%/°C respectively, providing detailed information on performance variations with temperature.
- Structural Strength: Designed to withstand wind loads up to 2400Pa and snow loads up to 5400Pa, ensuring safe installation in various geographical areas.
- Compact Design: With dimensions of 625x445x25mm and a weight of only 2.92Kg, this panel is easy to handle and install.
Detailed Technical Specifications:
- Cell Type: 210x30 Mono
- Number of Cells: 36 (arranged in 2 rows of 18 cells)
- Module Dimensions: 625mm x 445mm x 25mm
- Weight: 2.92 kg
- Front Cover: 3.2mm tempered glass, high transmittance, low iron content
- Frame: Anodized aluminum alloy
- Junction Box: IP65
- Cable: 2.5mm² 50cm cable + MC4 connectors
- Maximum Wind/Snow Load: 2400Pa / 5400Pa
- Nominal Operating Cell Temp. (NOCT): 45±2°C
- Temperature Coefficients Pmax: -0.350% /°C
- VOC Temperature Coefficients: -0.270% /°C
- ISC Temperature Coefficients: +0.048% /°C
This solar panel is an excellent investment for anyone looking for a clean, efficient, and long-lasting source of energy for their needs.
Characteristics & dimensions
Features
- Colour (shade): Black
- Material (details): Aluminum
- Energy type: Solar energy
- Peak power: 50 W
- DC voltage ouptut: 45 V
- Cell efficiency: 21 %
Dimensions
- Length: 62.5 cm
- Height: 2.5 cm
- Depth: 44.5 cm
