Mexen C22 Panel Radiator 400 x 2000 mm, Side Connection, 2371 W, Anthracite - W422-040-200-66
268,99 €
Description
Technical data:

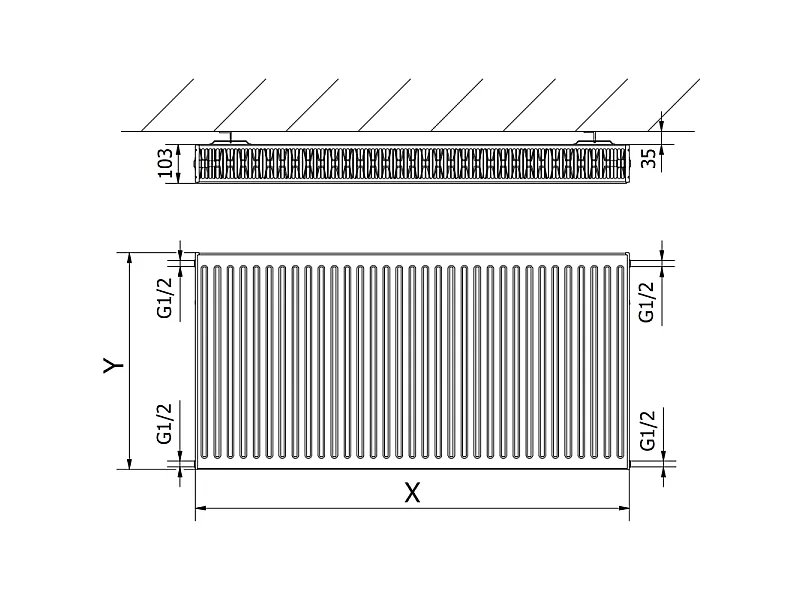

Height (Y): 400 mm
Width (X): 2000 mm
Depth: 103 mm
Connection spacing: 35 cm
Vertical water channel spacing: 33.3 mm
Colour: Anthracite RAL 7016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 1228 W
- 75/65/20 °C 2371 W
- 90/70/20 °C 2998 W
Connections:
- 4xG ½″ side
High quality, durable paint coating - DIN 99500
Features side cover and removable top cover
Includes: hangers, installation kit, sealing plugs, and air vent

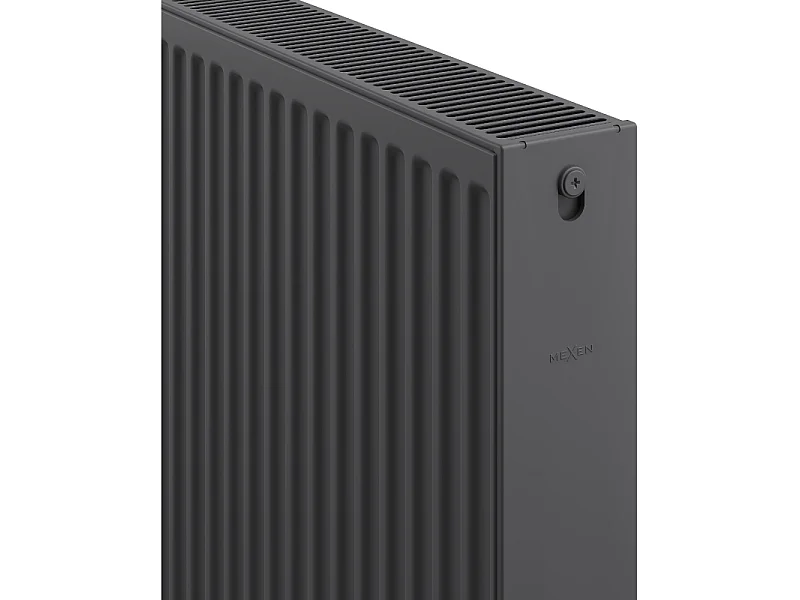

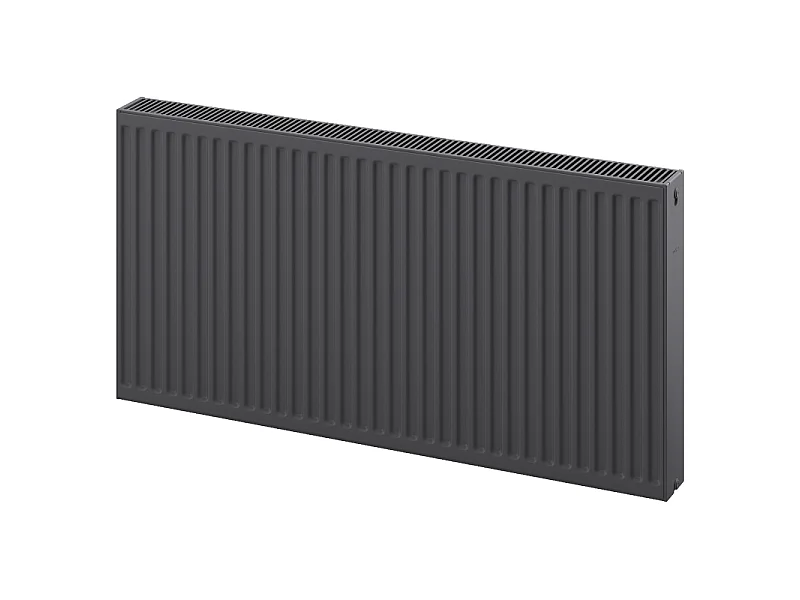

The images show the radiator in size 600 x 1200 mm.
Characteristics & dimensions
Features
- Colour (shade): Grey
- Material (details): Steel
- Type of radiator: Radiant
- Heating system: Hot water
- Size (radiator): Horizontal
- Heating surface (m²): 40 m²
- Heating system power: 2371 W
Dimensions
- Length: 200 cm
- Height: 40 cm
- Depth: 10.3 cm
