Mexen CV11 flat panel radiator 600 x 1000 mm, bottom connection, 933 W, white - W611-060-100-00

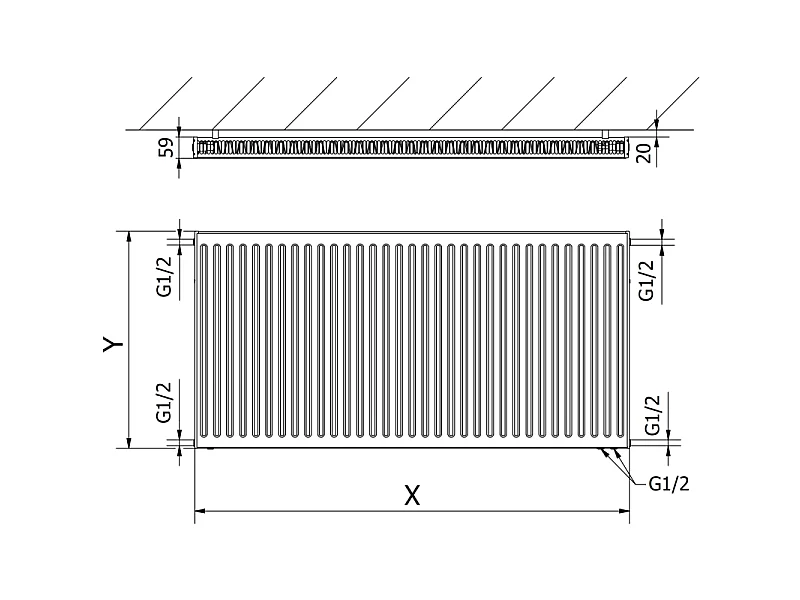

Technical Data:

Height (Y): 600 mm

Width (X): 1000 mm

Depth: 59 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Colour: White RAL 9016

Material: Steel

Weight: 16.50 kg

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 489 W

- 75/65/20 °C 933 W

- 90/70/20 °C 1176 W

Connections:

- 2xG ½″ from the bottom right

- 4xG ½″ side

High quality, durable lacquer coating - DIN 99500

Comes with a side cover and a removable top cover

Included: hangers, installation kit, sealing caps, air vent and valve insert

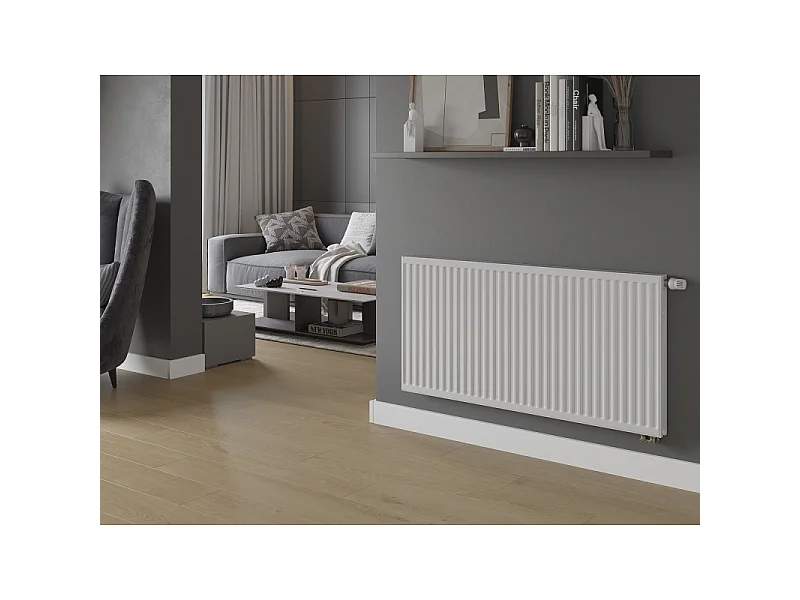

The photos show the radiator in size 600 x 1200 mm.
