Mexen CV11 flat radiator 300 x 2000 mm, bottom connection, 978 W, white - W611-030-200-00
143,99 €
Description
Technical data:
Height: 300 mm
Width: 2000 mm
Depth: 59 mm
Connection pitch: 5 cm
Vertical water channel spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 510 W
- 75/65/20 °C 978 W
- 90/70/20 °C 1234 W
Connections:
- 2xG ½″ from the right bottom
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
It has a side cover and a removable top cover
Includes: brackets, installation kit, blanking plugs, air vent and valve insert

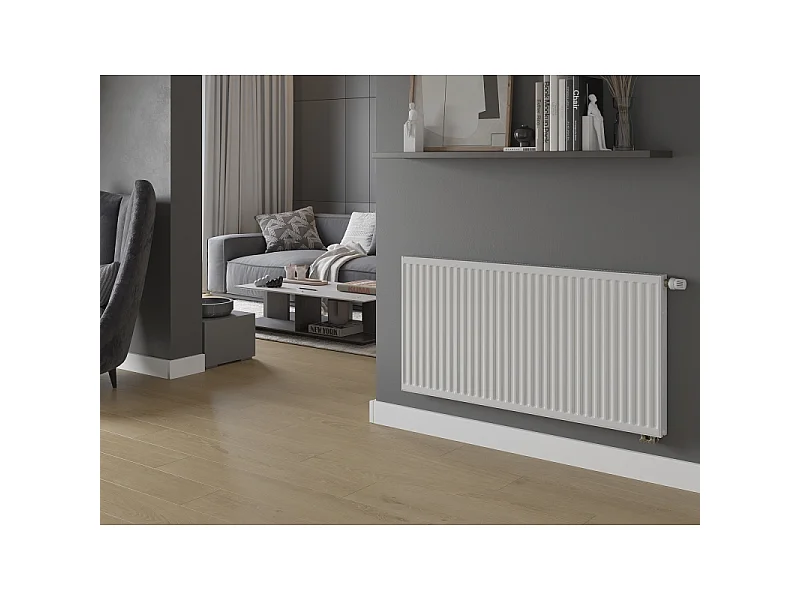

Photos show the radiator in size 600 x 1200 mm.
Characteristics & dimensions
Features
- Colour (shade): White
- Material (details): Steel
- Type of radiator: Radiant
- Heating system: Hot water
- Size (radiator): Horizontal
- Heating surface (m²): 16 m²
- Heating system power: 978 W
Dimensions
- Length: 200 cm
- Height: 30 cm
- Depth: 5.9 cm
