Mexen CV11 Panel Radiator 400 x 700 mm, Bottom Connection, 454 W, White - W611-040-070-00
88,99 €
Description
Technical data:
Height: 400 mm
Width: 700 mm
Depth: 59 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 237 W
- 75/65/20 °C 454 W
- 90/70/20 °C 572 W
Connections:
- 2xG ½″ from bottom right
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Set includes: hangers, installation kit, blanking plugs, air vent, and valve insert

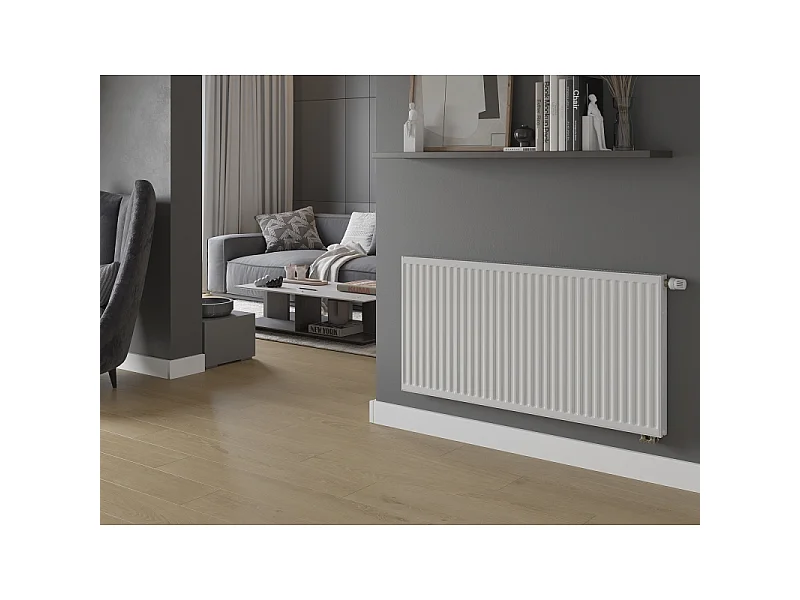

Photos show the radiator in size 600 x 1200 mm.
Characteristics & dimensions
Features
- Colour (shade): White
- Material (details): Steel
- Type of radiator: Radiant
- Energy type: Central heating
- Size (radiator): Horizontal
- Heating surface (m²): 8 m²
- Heating system power: 454 W
Dimensions
- Length: 70 cm
- Height: 40 cm
- Depth: 5.9 cm
