Mexen CV11 panel radiator 600 x 1100 mm, bottom connection, 1027 W, white - W611-060-110-00

Technical data:

Height (Y): 600 mm

Width (X): 1100 mm

Depth: 59 mm

Connection spacing: 5 cm

Spacing of vertical water channels: 33.3 mm

Color: White RAL 9016

Material: Steel

Weight: 17.95 kg

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 538 W

- 75/65/20 °C 1027 W

- 90/70/20 °C 1293 W

Connections:

- 2xG ½″ from the bottom right

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Set includes: brackets, installation kit, sealing plugs, air vent, and valve insert

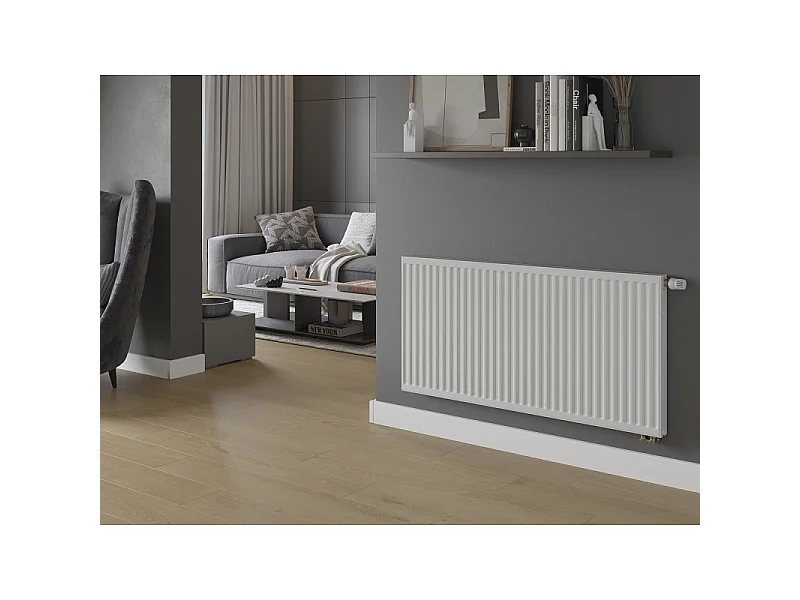

Photos show the radiator in size 600 x 1200 mm.
