Mexen CV33 panel radiator 500 x 800 mm, bottom connection, 1617 W, white - W633-050-080-00
179,99 €
Description
Technical data:
Height: 500 mm
Width: 800 mm
Depth: 164 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 836 W
- 75/65/20 °C 1617 W
- 90/70/20 °C 2046 W
Connections:
- 2xG ½″ bottom right
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Comes with a side cover and removable top cover
Includes: brackets, installation kit, sealing plugs, air vent and valve insert

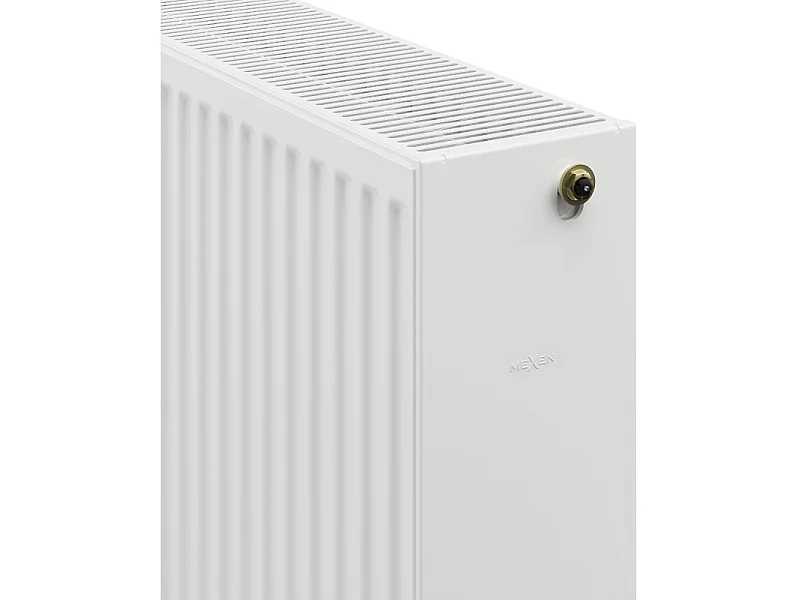

Images show the radiator in size 600 x 1200 mm.
Characteristics & dimensions
Features
- Colour (shade): White
- Material (details): Steel
- Type of radiator: Radiant
- Heating system: Hot water
- Size (radiator): Horizontal
- Heating surface (m²): 27 m²
- Heating system power: 1617 W
Dimensions
- Length: 80 cm
- Height: 50 cm
- Depth: 16.4 cm
