Mexen Flat CF22 panel radiator 900 x 900 mm, side connection, 1979 W, white - W422F-090-090-00
260,99 €
Description

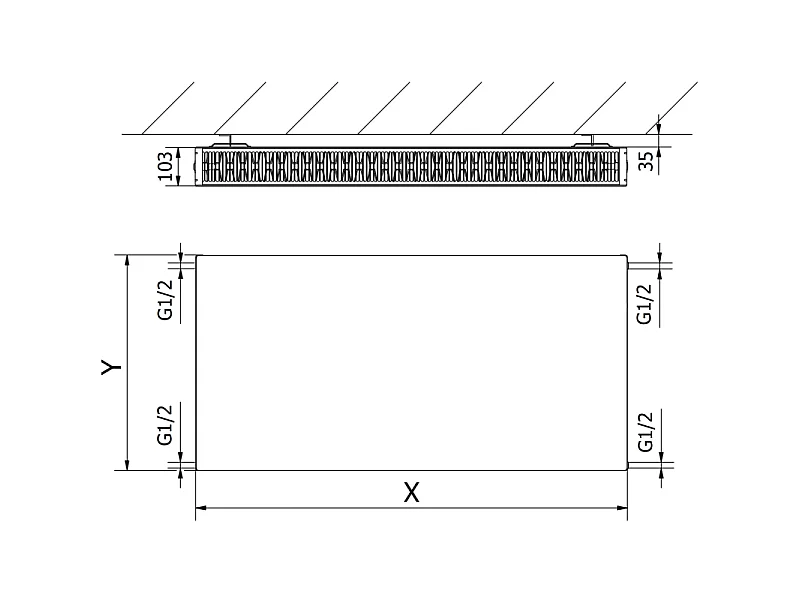

Technical data:
Height (Y): 900 mm
Width (X): 900 mm
Depth: 103 mm
Connection spacing: 85 cm
Spacing of vertical water channels: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 1022 W
- 75/65/20 °C 1979 W
- 90/70/20 °C 2506 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Features side cover and removable top cover
Included: brackets, installation kit, blind plugs and air vent
The pictures show the radiator in size 600 x 1200 mm.
Characteristics & dimensions
Features
- Colour (shade): White
- Material (details): Steel
- Type of radiator: Radiant
- Heating system: Hot water
- Size (radiator): Horizontal
- Heating surface (m²): 33 m²
- Heating system power: 1979 W
Dimensions
- Length: 90 cm
- Height: 90 cm
- Depth: 10.3 cm
