Mexen Flat CVF11 panel radiator 300 x 400 mm, bottom connection, 182 W, white - W611F-030-040-00
97,99 €
Description

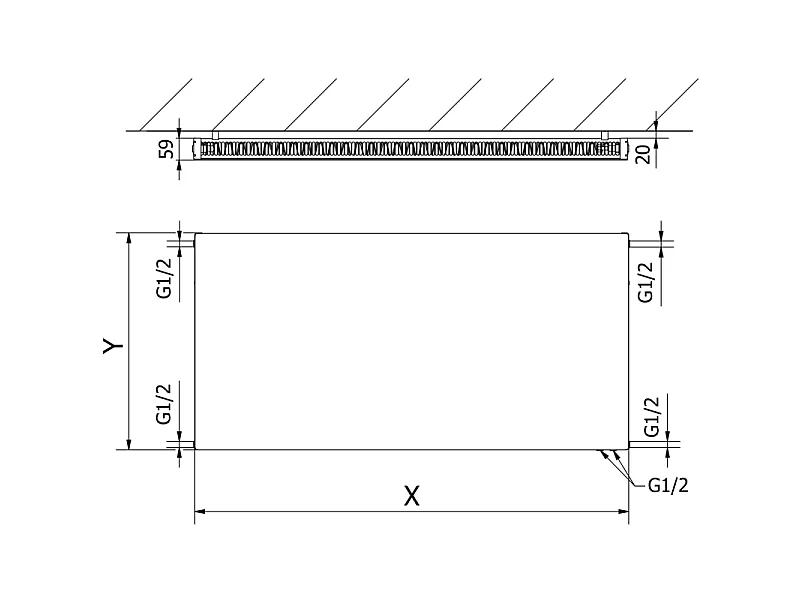

Technical data:
Height (Y): 300 mm
Width (X): 400 mm
Depth: 59 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 98 W
- 75/65/20 °C 182 W
- 90/70/20 °C 227 W
Connections:
- 2xG ½″ bottom right
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Features side casing and removable top cover
Included: suspenders, installation kit, blanking caps, air vent, and valve insert

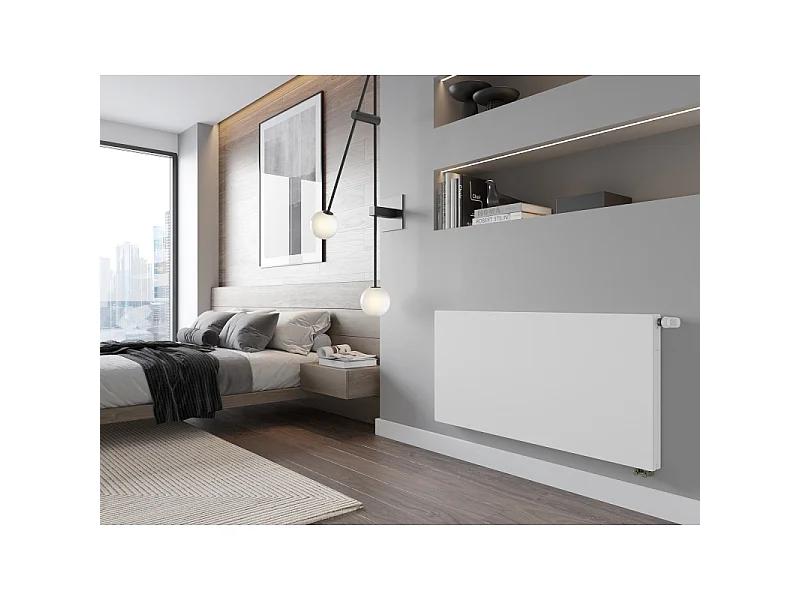

The photos show the radiator in size 600 x 1200 mm.
Characteristics & dimensions
Features
- Colour (shade): White
- Material (details): Steel
- Type of radiator: Radiant
- Heating system: Hot water
- Size (radiator): Horizontal
- Heating surface (m²): 3 m²
- Heating system power: 182 W
Dimensions
- Length: 40 cm
- Height: 30 cm
- Depth: 5.9 cm
