Mexen Flat CVF11 Panel Radiator 400 x 1000 mm, Bottom Connection, 555 W, White - W611F-040-100-00

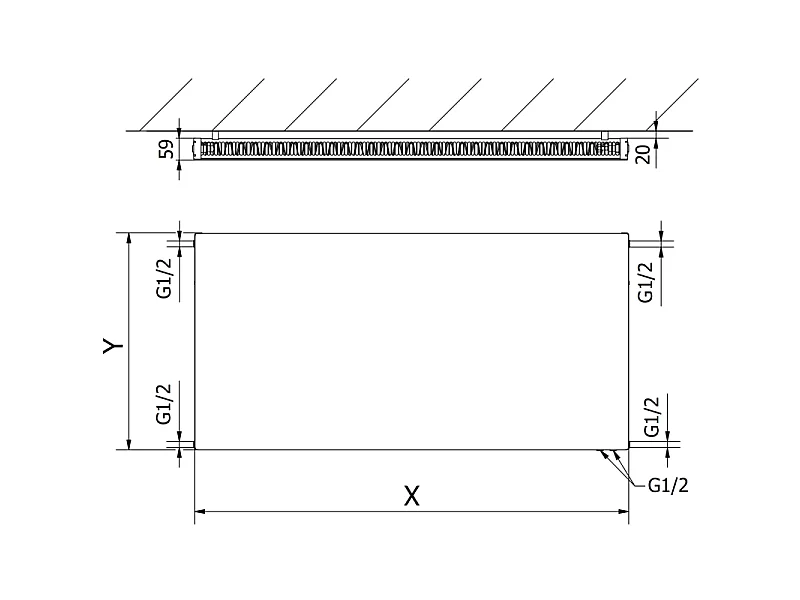

Technical specifications:

Height (Y): 400 mm

Width (X): 1000 mm

Depth: 59 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 295 W

- 75/65/20 °C 555 W

- 90/70/20 °C 695 W

Connections:

- 2xG ½″ from right bottom

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Complete with: hangers, installation set, sealing plugs, air vent, and valve insert

Photos show the radiator size of 600 x 1200 mm.
