Mexen Flat CVF11 panel radiator 600 x 1500 mm, bottom connection, 1175 W, white - W611F-060-150-00
265,99 €
Description
Technical Data:

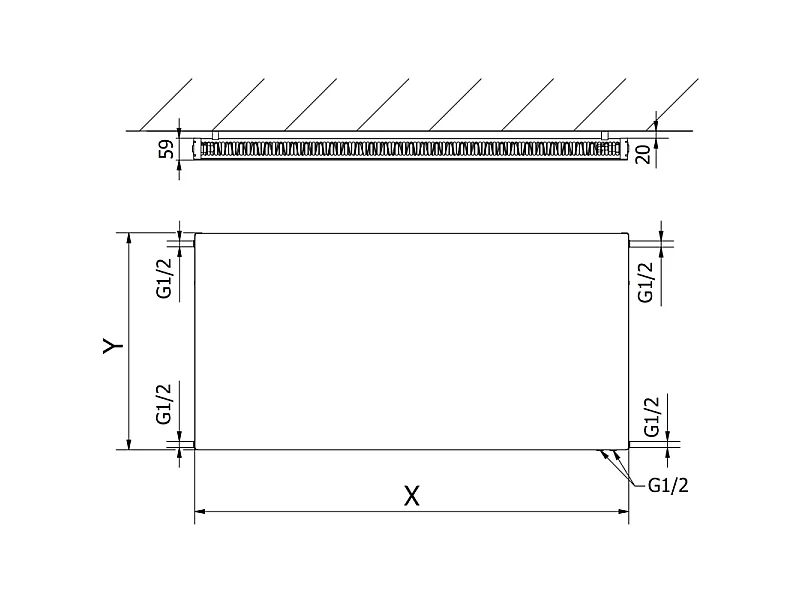

Height (Y): 600 mm
Width (X): 1500 mm
Depth: 59 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 622 W
- 75/65/20 °C 1175 W
- 90/70/20 °C 1474 W
Connections:
- 2xG ½″ from the bottom right
- 4xG ½″ side
High quality, durable paint finish - DIN 99500
Features a side cover and removable top cover
Includes: brackets, installation kit, sealing plugs, air vent, and valve insert

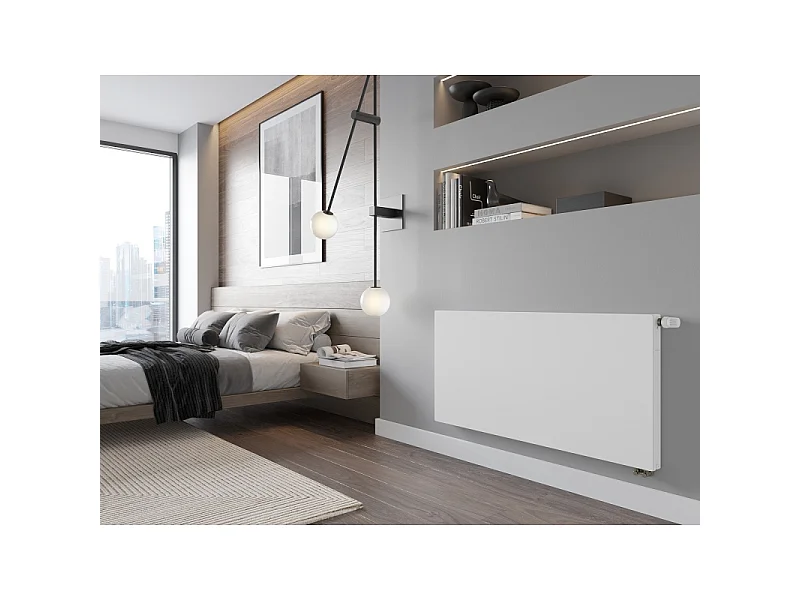

Images show the radiator in size 600 x 1200 mm.
Characteristics & dimensions
Features
- Colour (shade): White
- Material (details): Steel
- Type of radiator: Radiant
- Heating system: Hot water
- Size (radiator): Horizontal
- Heating surface (m²): 20 m²
- Heating system power: 1175 W
Dimensions
- Length: 150 cm
- Height: 60 cm
- Depth: 5.9 cm
