Mexen Flat CVF21 Panel Radiator 300 x 400 mm, Bottom Connection, 252 W, White - W621F-030-040-00

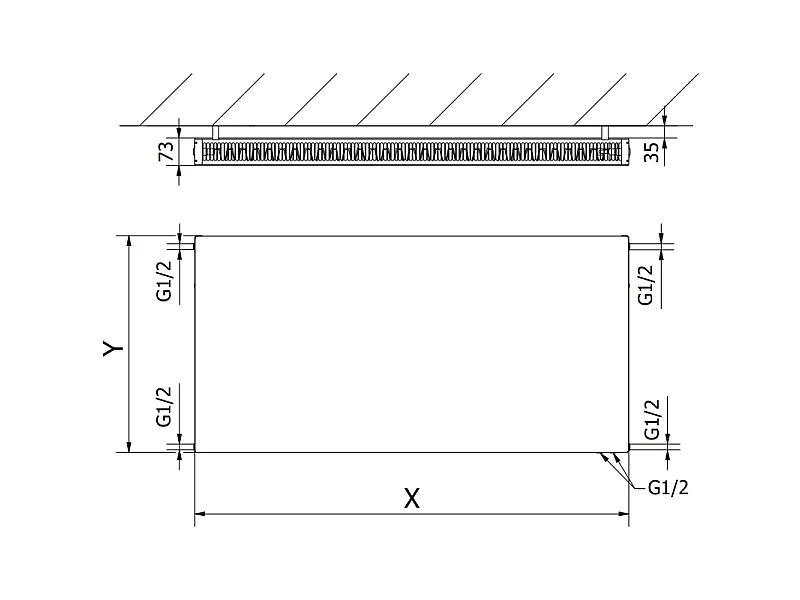

Technical data:

Height (Y): 300 mm

Width (X): 400 mm

Depth: 73 mm

Connection distance: 5 cm

Distance between vertical water channels: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 134 W

- 75/65/20 °C 252 W

- 90/70/20 °C 316 W

Connections:

- 2xG ½″ from the bottom on the right or left side

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Features side cover and removable top cover

Includes: brackets, installation set, sealing plugs, air vent, and valve insert

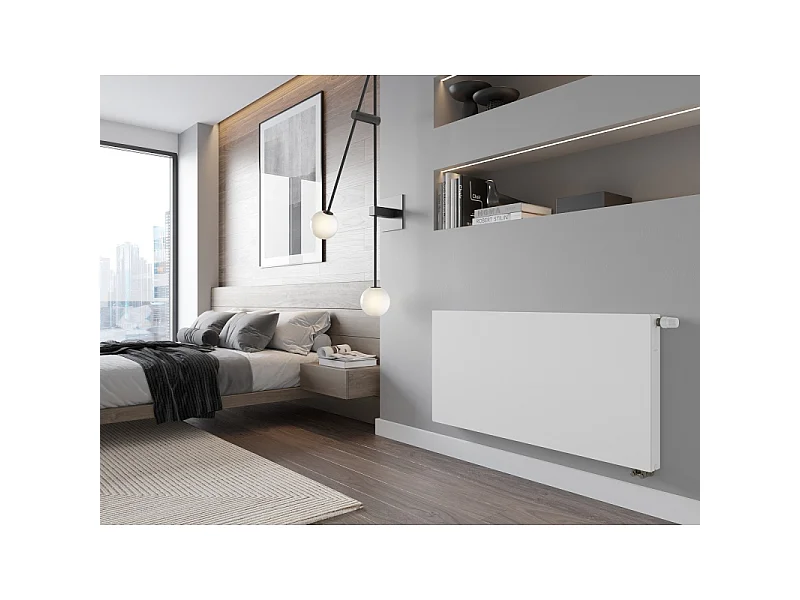

Pictures show the radiator in size 600 x 1200 mm.
