Mexen Flat CVF21 Panel Radiator 400 x 1000 mm, Bottom Connection, 793 W, White - W621F-040-100-00
182,99 €
Description

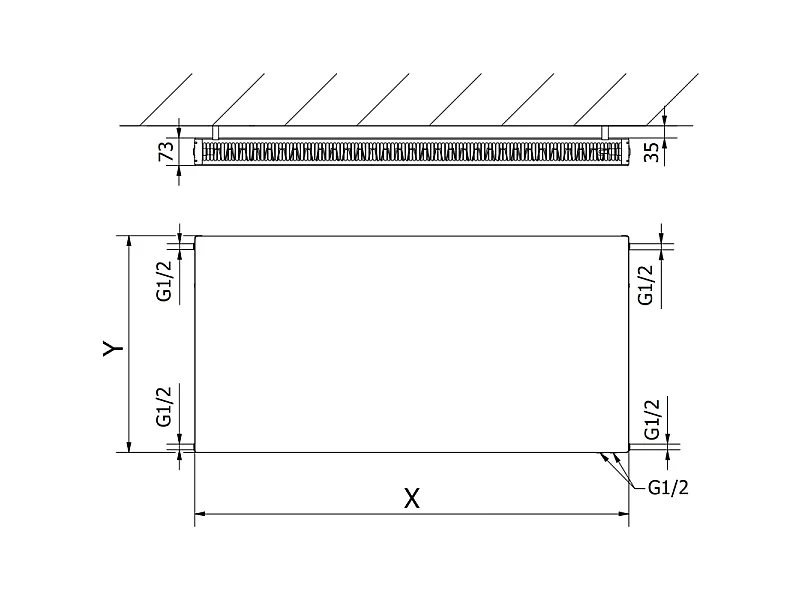

Technical specifications:
Height (Y): 400 mm
Width (X): 1000 mm
Depth: 73 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 420 W
- 75/65/20 °C 793 W
- 90/70/20 °C 995 W
Connections:
- 2xG ½″ bottom right or left
- 4xG ½″ side
High quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Includes: hangers, installation kit, blind plugs, air vent, and valve insert

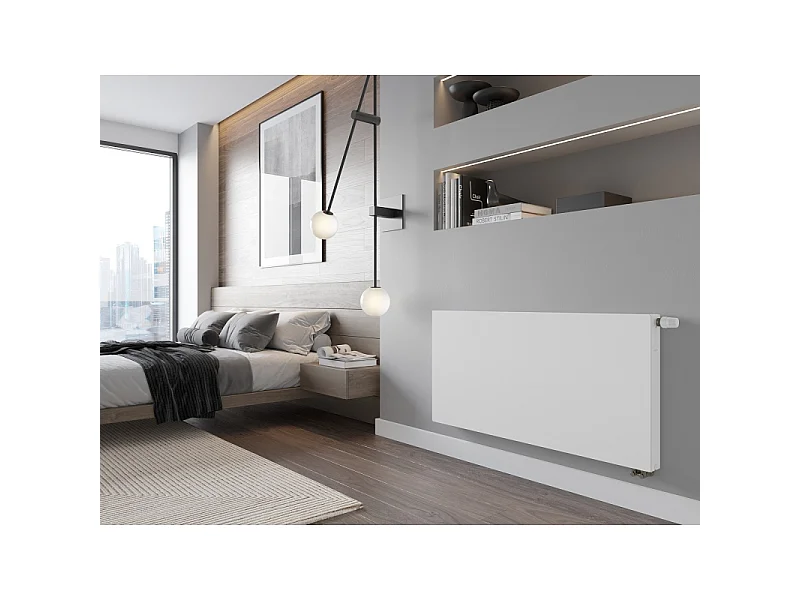

Images show the radiator in size 600 x 1200 mm.
Characteristics & dimensions
Features
- Colour (shade): White
- Material (details): Steel
- Type of radiator: Radiant
- Heating system: Hot water
- Size (radiator): Horizontal
- Heating surface (m²): 13 m²
- Heating system power: 793 W
Dimensions
- Length: 100 cm
- Height: 40 cm
- Depth: 7.3 cm
