Mexen Flat CVF21 panel radiator 900 x 400 mm, bottom connection, 636 W, white - W621F-090-040-00

Technical data:

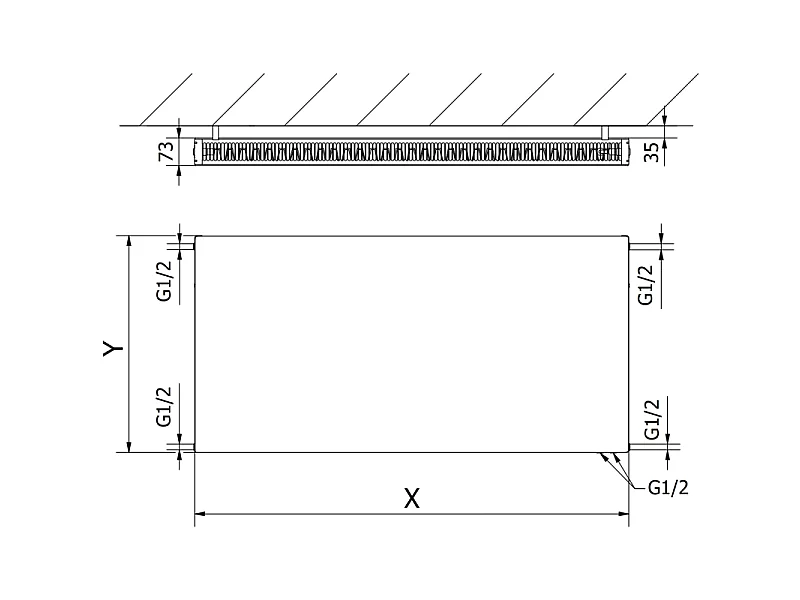

Height (Y): 900 mm

Width (X): 400 mm

Depth: 73 mm

Connection spacing: 5 cm

Spacing of vertical water channels: 33.3 mm

Colour: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 346 W

- 75/65/20 °C 636 W

- 90/70/20 °C 790 W

Connections:

- 2xG ½″ from the bottom on the right or left side

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Features a side cover and removable top grille

Includes: brackets, mounting kit, sealing plugs, air vent and valve insert

Photos show a radiator in the size 600 x 1200 mm.
