Mexen Flat CVF22 panel radiator 300 x 400 mm, bottom connection, 360 W, white - W622F-030-040-00

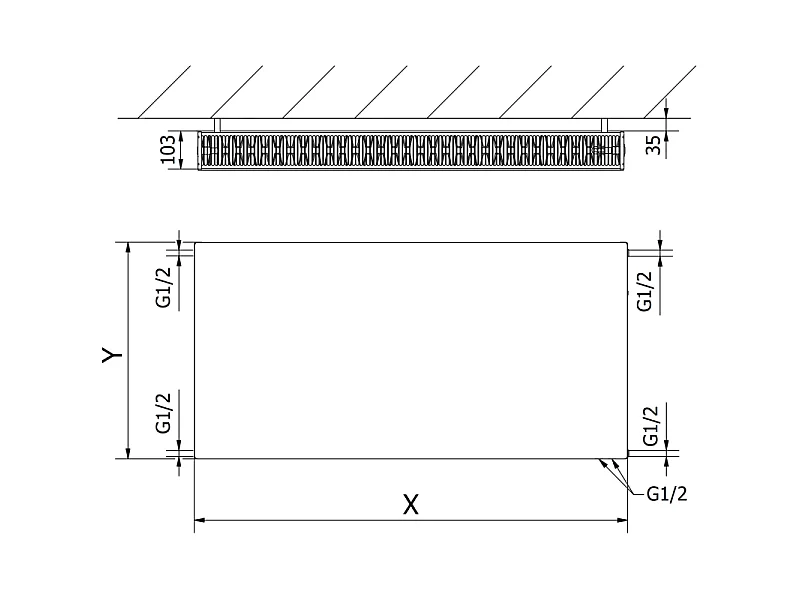

Technical data:

Height (Y): 300 mm

Width (X): 400 mm

Depth: 103 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Colour: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 190 W

- 75/65/20 °C 360 W

- 90/70/20 °C 453 W

Connections:

- 2xG ½″ from the bottom on the right or left side

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Features a side cover and removable top cover

Included: brackets, installation kit, sealing plugs, air vent, and valve insert

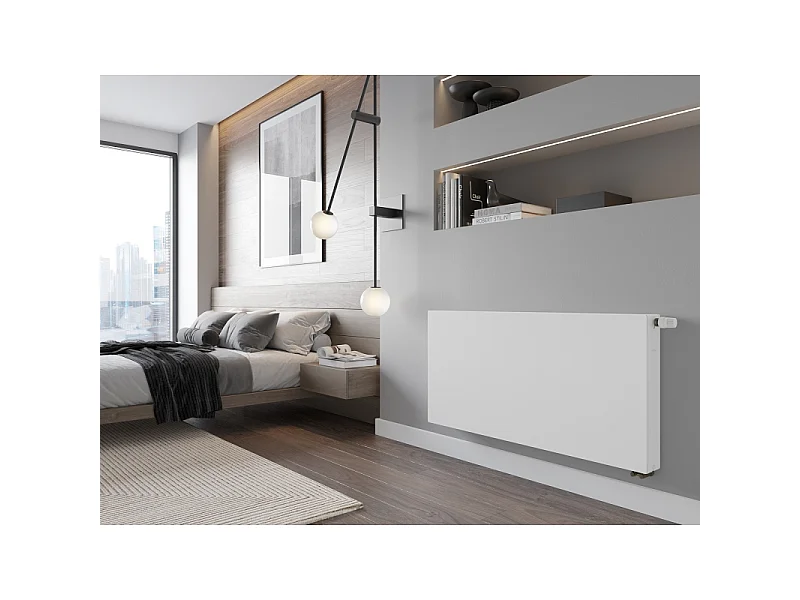

The images show a radiator in size 600 x 1200 mm.
