Mexen Flat CVF22 panel radiator 500 x 800 mm, bottom connection, 1092 W, anthracite - W622F-050-080-66

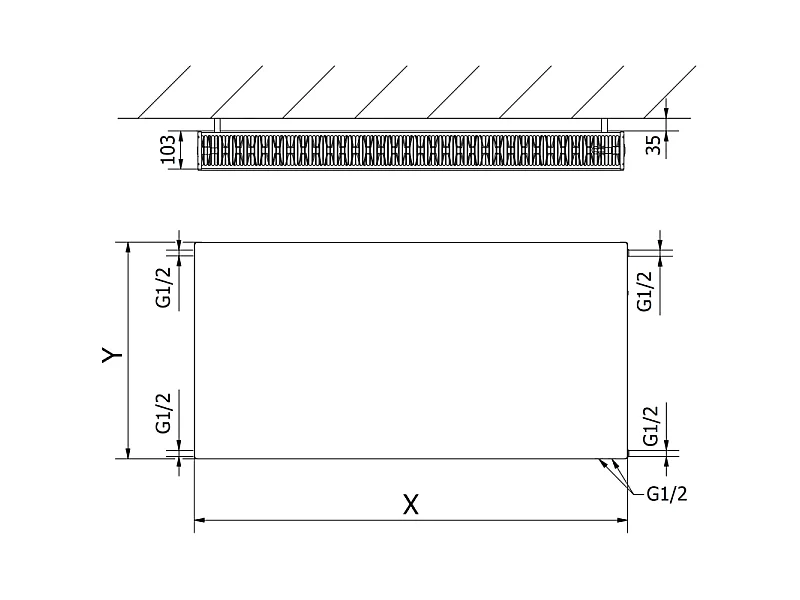

Technical Data:

Height (Y): 500 mm

Width (X): 800 mm

Depth: 103 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Colour: Anthracite RAL 7016

Material: Steel

Working temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating output:

- 55/45/20 °C 571 W

- 75/65/20 °C 1092 W

- 90/70/20 °C 1375 W

Connections:

- 2xG ½″ bottom from the right or left side

- 4xG ½″ side

High quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Includes: brackets, mounting kit, sealing plugs, air vent, and valve insert

The photos show the radiator in size 600 x 1200 mm.
