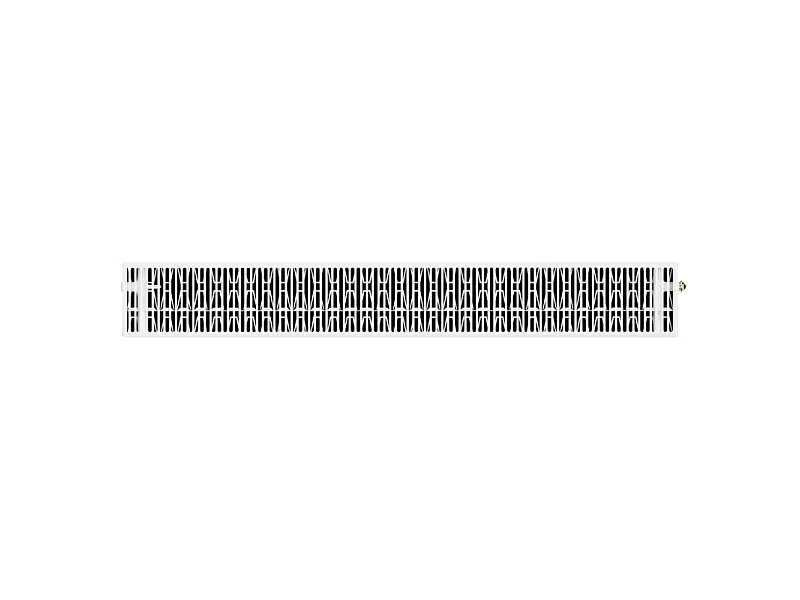

Mexen Flat CVF33 Panel Radiator 300 x 500 mm, Bottom Connection, 620 W, White - W633F-030-050-00
137,99 €
Description
Technical data:
Height (Y): 300 mm
Width (X): 500 mm
Depth: 164 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 326 W
- 75/65/20 °C 620 W
- 90/70/20 °C 780 W
Connections:
- 2xG ½″ from the bottom right
- 4xG ½″ side
High-quality, durable paint finish - DIN 99500
Includes side cover and removable top cover
Includes: brackets, mounting kit, sealing caps, air vent, and valve insert

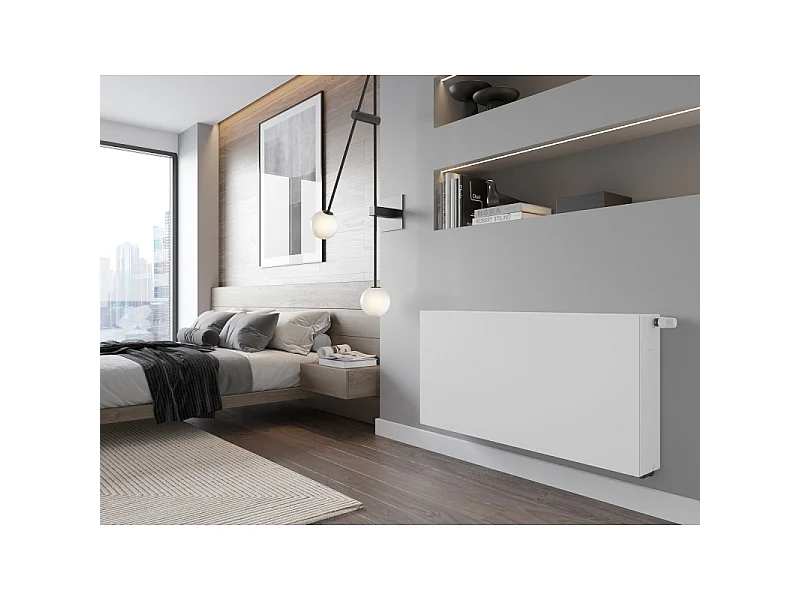

Images show the radiator in size 600 x 1200 mm.

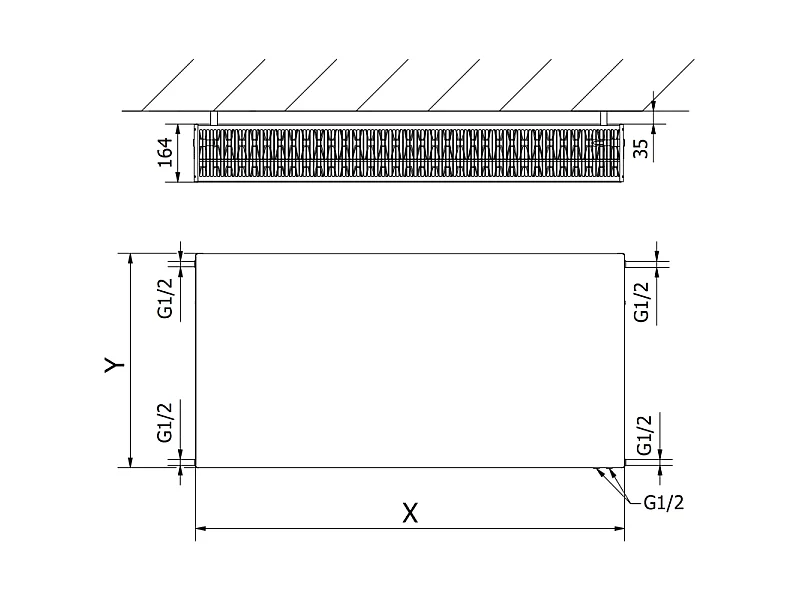

Characteristics & dimensions
Features
- Colour (shade): White
- Material (details): Steel
- Type of radiator: Radiant
- Heating system: Hot water
- Size (radiator): Horizontal
- Heating surface (m²): 10 m²
- Heating system power: 620 W
Dimensions
- Length: 50 cm
- Height: 30 cm
- Depth: 16.4 cm
