Mexen Flat CVF33 panel radiator 600 x 500 mm, bottom connection, 1100 W, white - W633F-060-050-00

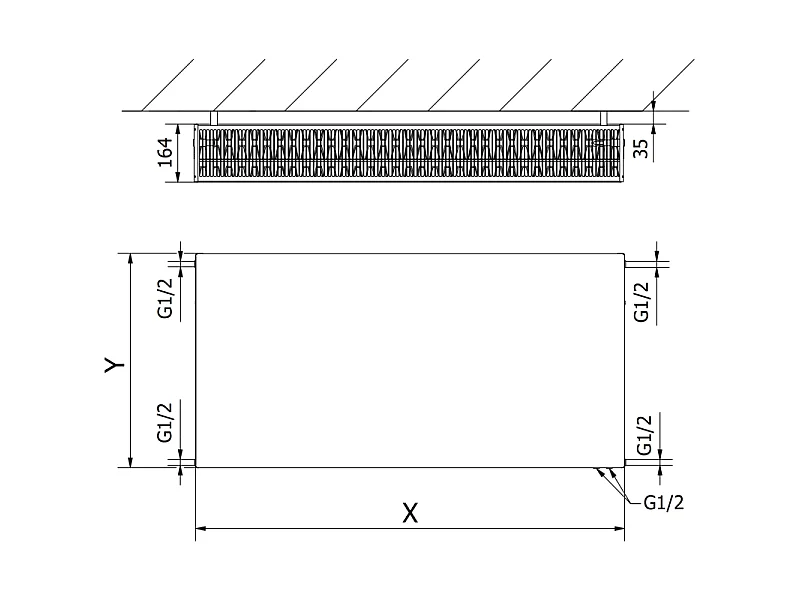

Technical data:

Height (Y): 600 mm

Width (X): 500 mm

Depth: 164 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Colour: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 570 W

- 75/65/20 °C 1100 W

- 90/70/20 °C 1392 W

Connections:

- 2xG ½″ from the bottom on the right

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Equipped with a side cover and removable top cover

Includes: brackets, installation kit, sealing plugs, air vent and valve insert

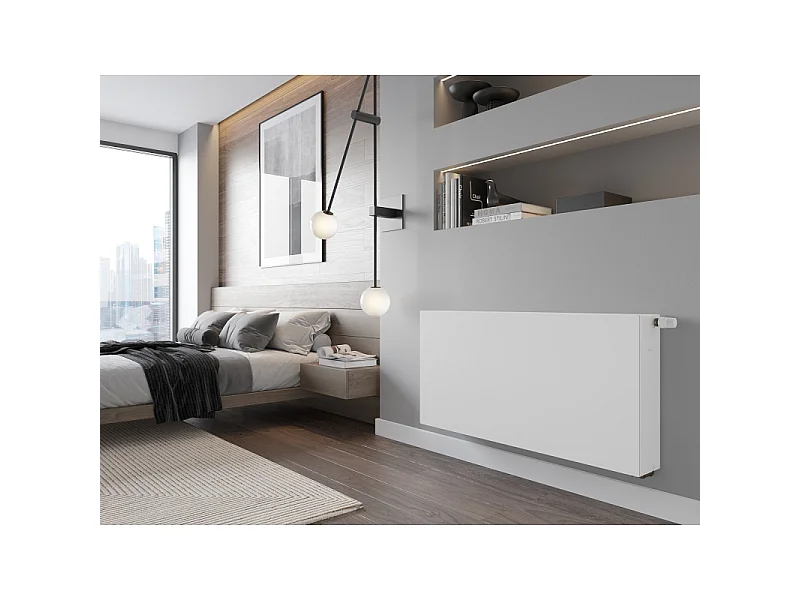

The photos show a radiator in the size of 600 x 1200 mm.
